Switchgear Outer Cone Termination RSTI-1

Features:

  • Confirm to Type “C” bushing as per EN50180 / EN50181.
  • Suitable for Type “C” bushing voltage upto 33KV and Current upto 1250A.
  • The wide application range covers cable cross sections from 35 to 800 mm2.
  • Easily accessible rear plug with capacitive test point.
  • Built in Trifurcating kit for 3 Core version.
  • Conductor connection with mechanical lugs ensures perfect tightening unlike crimping.
  • Screened Elbow Connector for Type “C” bushing.
Add to quote
Category:
Description

Description

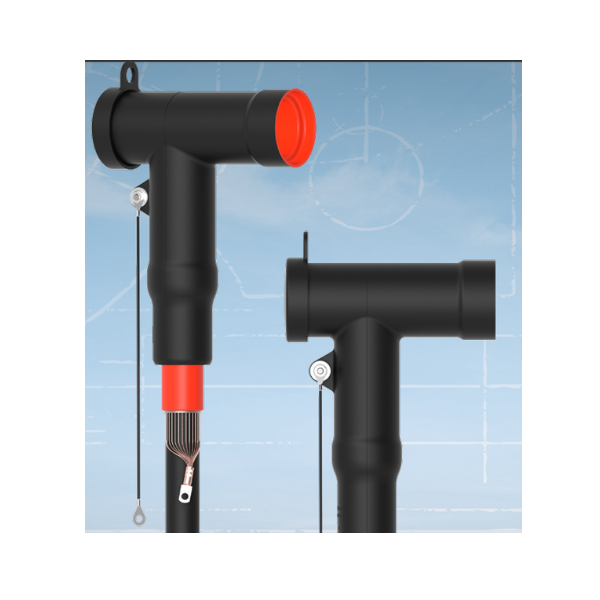

Switchgear Outer Cone Termination (RSTI):
Raychem Screened separable T-connectors RSTI are designed to connect single and three-core polymeric cables to medium voltage gas insulated switchgear and other equipment using bushings type “C” (EN50180/EN50181) upto 1250A
upto 33 kV.
